Product Name:H4350 BEET HARVEST MACHINE
-
Category:H4350 BEET HARVEST MACHINE
-
Main Category:BEET HARVEST MACHINE
SINGLE ROW BEET HARVEST MACHINE 4 TONS CAPACITY
IT IS THE SINGLE-ROW BEET COMBINED HARVEST MACHINE WHICH PERFORMS THE TOPPING, UPROOTING, CLEANING, STONNG AND UNLOADING OPERATIONS OF SUGAR BEET. IT IS CONNECTED TO THE TOW-BAR OF TRACTOR.

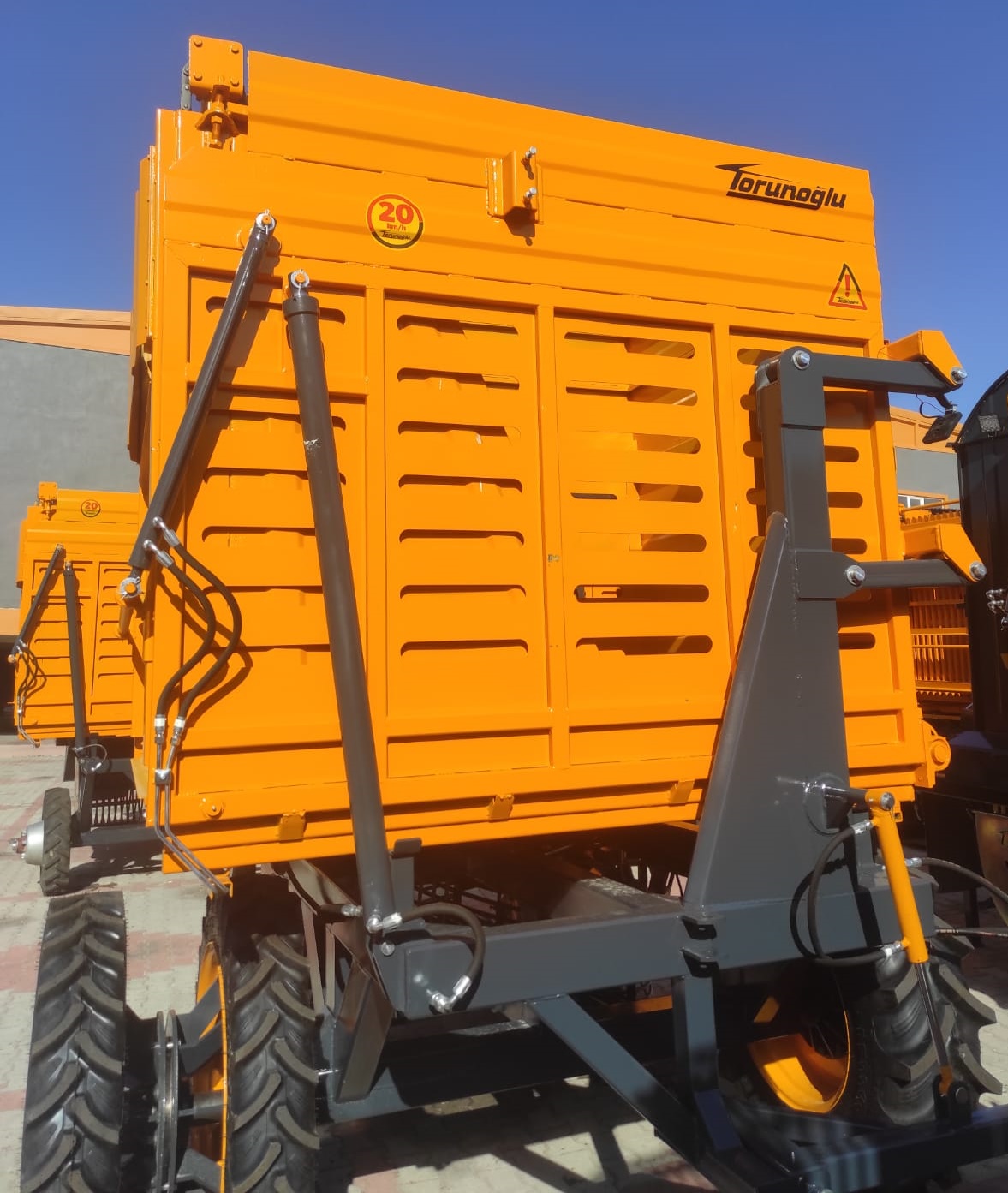

IT IS MORE USEFUL IN MUDDY FIELDS BY MEANS OF ITS BUFFETTING SYSTEM PLACED BETWEEN THE UPROOTER BLADES. THE CONTAINER ELEVATION LEVERS OF H42OO MODEL ARE DESIGNED AS PARALLEL LEVERS AND WHEN
THE CONTAINER IS AT 420 CM DISCHARGE HEIGHT, THE ANGLE WITH THE GROUND DOES NOT EXCEED 30? BY THIS WAY. THE DISCHARGE PROCESS CAN BE PERFORMED FASTER. THE LUBRICANT CONTAINER OF THE HYDRAULIC SYSTEM
TECHNICIAL SPECIFICATIONS
Uzunluk (cm) |
Length (cm) |
610 |
Genişlik (cm) |
Width (cm) |
360 |
Yükseklik |
Height (cm) |
385 |
Ağırlık (Kg) |
Weight (Kg) |
4050 |
Güç (HP) |
Power (Hp) |
80-90 |
Lastik Çapı |
Tire Diameter |
210/95 R32-340/85 R24 |
Kuyruk Mili Devri |
Power Take Off rom (d/d) |
540 |
Yükleme yüksekliği (cm) |
Loading Height (cm) |
435 |
İş Kapasitesi (d/h) |
Operational Capacity (d/h) |
1,5x2 |
Depo Kapasitesi (Kg) |
Storage Capacity (Kg) |
4000 |
Depo Boşaltma Tipi |
Container Discharge Type |
Bantlı / Belted |
* FOUR PUMP SHAFT SYSTEM ONLY ON TORUNOĞLU BEET HARVEST MACHINES
